Clamp Meters

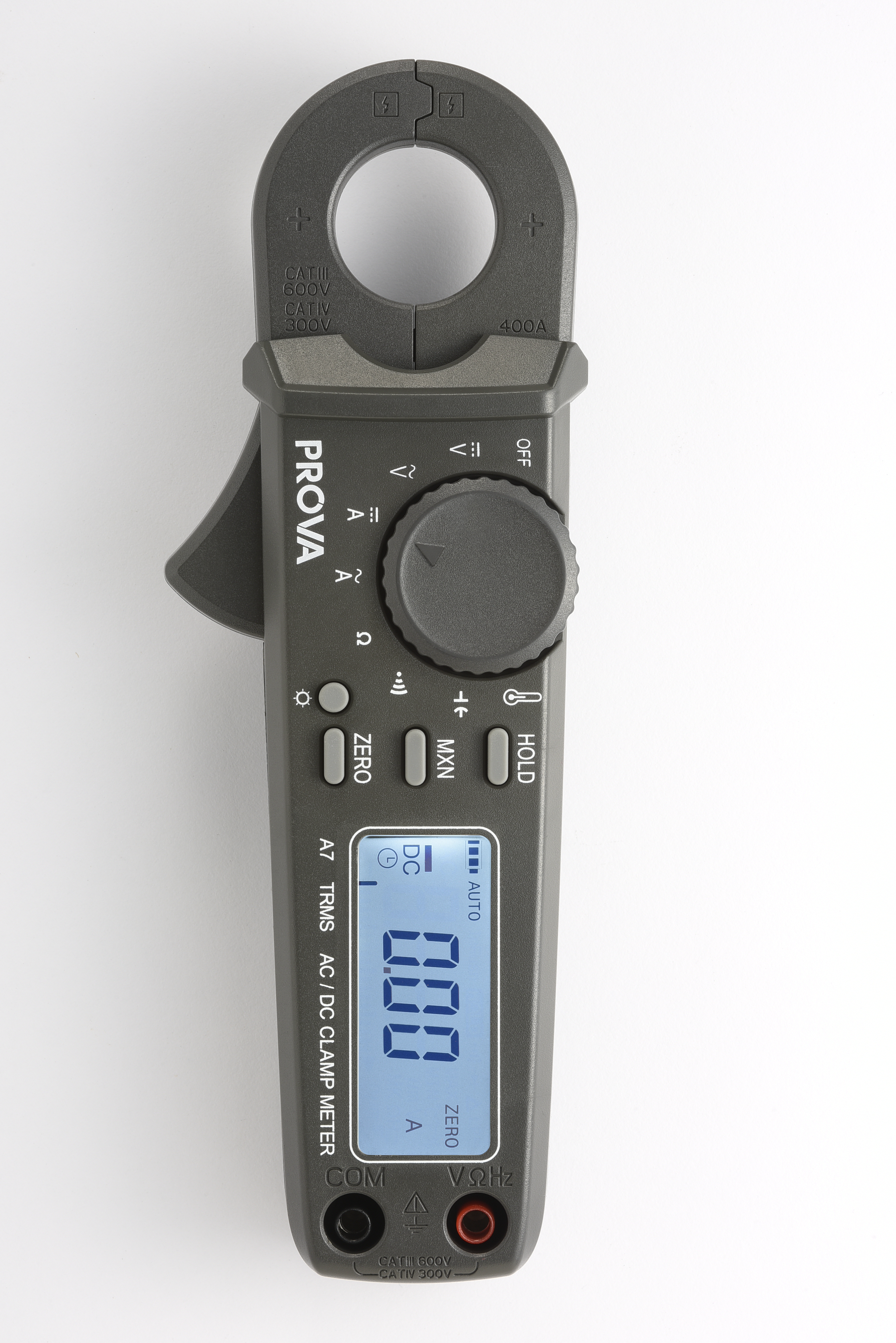

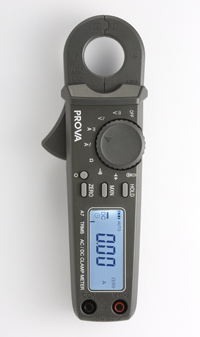

PROVA A7AC/DC TRMS Clamp Meter
.jpg)
PROVA A7AC/DC TRMS Clamp Meter
․High resolution AC/DC 10 mA current measurement (
․AC/DC current measurement: 40A/ 400A.
․AC/DC voltage measurement: 4V/ 40V/ 400V/ 1000V.
․True RMS measurement of AC current and voltage.
․Resistance, Continuity, Capacitance and Temperature (℃ or ℉) measurement.
․Auto and full ranges: V, A, Resistance, Capacitance and Temperature.
․One Touch Zero for DCA adjustment.
․25mm large jaw diameter.
․AC/DC current accuracy ±1%±3dgts (<100A).
․AC/DC voltage accuracy ±0.5%±2dgts.
․Resistance accuracy ±0.8%±2dgts (40/ 400/ 4K/ 40K/ 400K/ 4000K/ 40MΩ).
․Capacitance accuracy ±0.8%±3dgt (40n/ 400n/ 4u/ 40u/ 400u/ 4m/ 40mF).
․Temperature (℃, fixed at the factory) best accuracy ±0.5%±0.5℃ (-200.0 to 1300℃).
․Temperature (℉, fixed at the factory) best accuracy ±0.5%±0.9℉ (-328.0 to 2372℉).
․Auto-power-off function (15 minutes).
․Continuity test.
․Backlight.
․Maximum, minimum, and hold functions.
․600V overload protection for ohm measurement.
․Ideal for works in crowded switch box or cable areas.
․High resolution AC/DC 10 mA current measurement (
․AC/DC current measurement: 40A/ 400A.
․AC/DC voltage measurement: 4V/ 40V/ 400V/ 1000V.
․True RMS measurement of AC current and voltage.
․Resistance, Continuity, Capacitance and Temperature (℃ or ℉) measurement.
․Auto and full ranges: V, A, Resistance, Capacitance and Temperature.
․One Touch Zero for DCA adjustment.
․25mm large jaw diameter.
․AC/DC current accuracy ±1%±3dgts (<100A).
․AC/DC voltage accuracy ±0.5%±2dgts.
․Resistance accuracy ±0.8%±2dgts (40/ 400/ 4K/ 40K/ 400K/ 4000K/ 40MΩ).
․Capacitance accuracy ±0.8%±3dgt (40n/ 400n/ 4u/ 40u/ 400u/ 4m/ 40mF).
․Temperature (℃, fixed at the factory) best accuracy ±0.5%±0.5℃ (-200.0 to 1300℃).
․Temperature (℉, fixed at the factory) best accuracy ±0.5%±0.9℉ (-328.0 to 2372℉).
․Auto-power-off function (15 minutes).
․Continuity test.
․Backlight.
․Maximum, minimum, and hold functions.
․600V overload protection for ohm measurement.
․Ideal for works in crowded switch box or cable areas.
