Clamp Meters

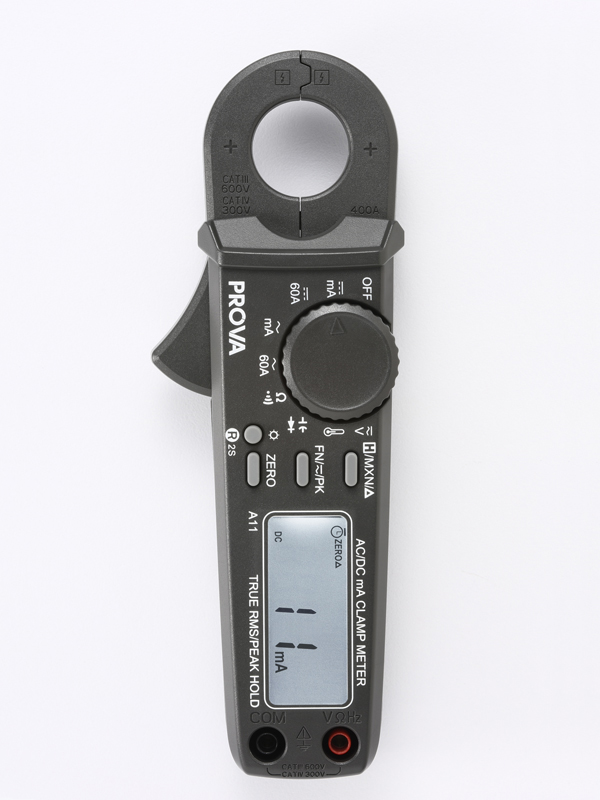

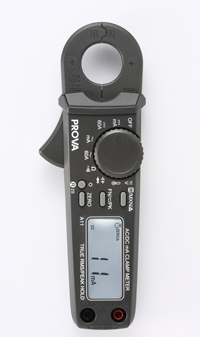

PROVA A11mA AC/DC Clamp Meter
1. Very high resolution DC 1mA, AC 0.1mA.
2. AC/DC (mA, A) current measurement: 6A / 60A.
3. AC/DC (V) voltage measurement: 60V / 600V.
4. AC current measurement: TRMS.
5. Resistance, Continuity, Capacitance, Diode and Temperature (℃/℉) measurement.
6. Voltage/Current Peak value measurement.
7. 6000 counts
8. Auto and Manual ranges for AC mA, AC/DC V, Resistance and Capacitance.
9. One Touch Zero for DCA adjustment.
10. 25mm large jaw diameter.
11. Auto-power-off function (30 min.) and Backlight.
12. Delta (Δ) functions w.r.t. hold value.
13. Dual display: Hold + Ave, Max + Min, ΔMax + ΔMin.
14. Dual display (peak hold): Hold + Ave, Peak Max + Peak Min, ΔPeak Max + ΔPeak Min.
15. Low Pass Filter (LPF, 1KHz, -3dB) (e.g. for VFD measurement)
16. 600V overload protection for Resistance and Capacitance measurement.
17. Ideal for works in crowded switch box or cable areas.
