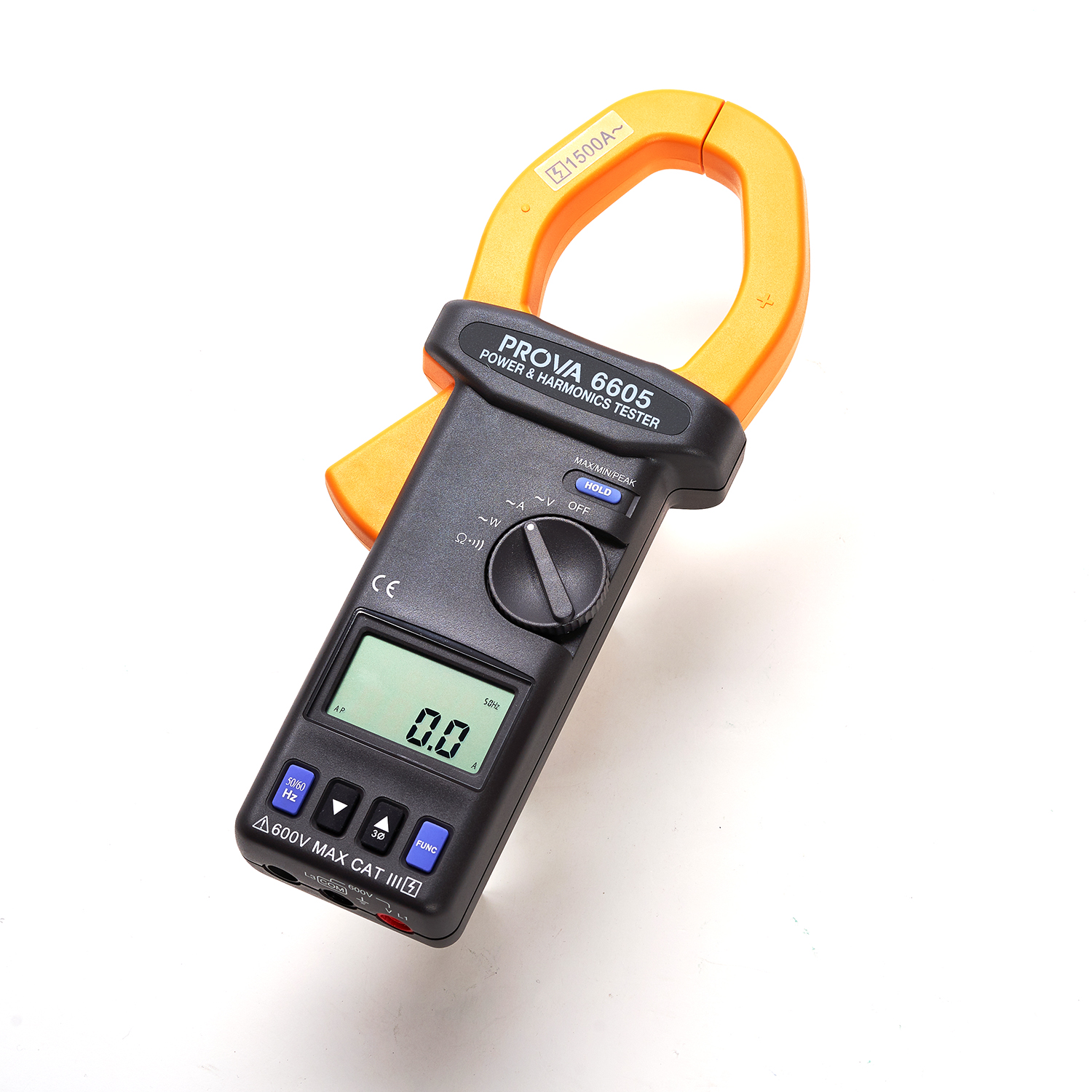

PROVA

■     Active (W, KW, HP), reactive (VAR, KVAR) and apparent (VA, KVA) power

■     Power factor (PF), phase angle (Φ), and energy (WH, KWH)

■     Non-interrupted AC current harmonic analysis

■     1 to 99^th order of harmonics at 2.0% basic accuracy

■     Total harmonic distortion (%THD-F) and crest factor (CF)

■     True RMS measurement of V and A at 0.5% basic accuracy

■     Fast peak function (39μs for 50 Hz, 33μs for 60Hz)

■     Resistance and Continuity with Beeper

■     Measurement of balanced 3Φ power

■     Measurement of balanced 3Φ sequence

■     Programmable CT ratio from 1 to 250

■     Max, Min and data hold functions

■     Active power in H.P.

■     Auto power off function in 30 minutes

■     AC current: 0~1500A
